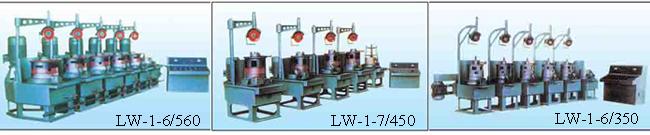

LW-pulley wire drawing machine
The equipment is consisted by main reduction box, die casing wheel frame. Sash braise and electrical control system. The motor supply the power and control the speed of machines by 4 gears. The drawing boxes are vertically fixed on the sealed box. Add the oil in the box to lubricate the gears.
This series of machines are ideal equipment to draw high, middle, low carbon steel, as well as copper, aluminum other material wire.
Main Specification:
Technica LW-1-6/650 LW-1-6/560 LW-1-7/450 LW-1-6/350 Material strength ðb≥110kg/mm2 128kg/mm2 ðb≥140kg/mm2 Max input dia 8mm 6.5mm 3.4mm 2.5mm Min output dia 2.5mm 2mm 1mm 0.75mm Block dia 650mm 560mm 450mm 350mm Max average condensation 30％ 30％ 20％ 21％ Total condensation 75-85％ 78-88.5％ 77.9％ 78％ Max speed 200m/min 245m/min 346.9m/min 200m/min power 22kw 18.5-22kw 15kw 7.5-11kw weight 2500kg 2000kg 1500kg 1000kg Overall dimensions 1900×1300×2300mm 1800×1150×2200mm 1520×1000×2100mm 1400×800×1800mm
